Kramer VM10HD 1:10 HD/SDI Distribution Amplifier

Product description

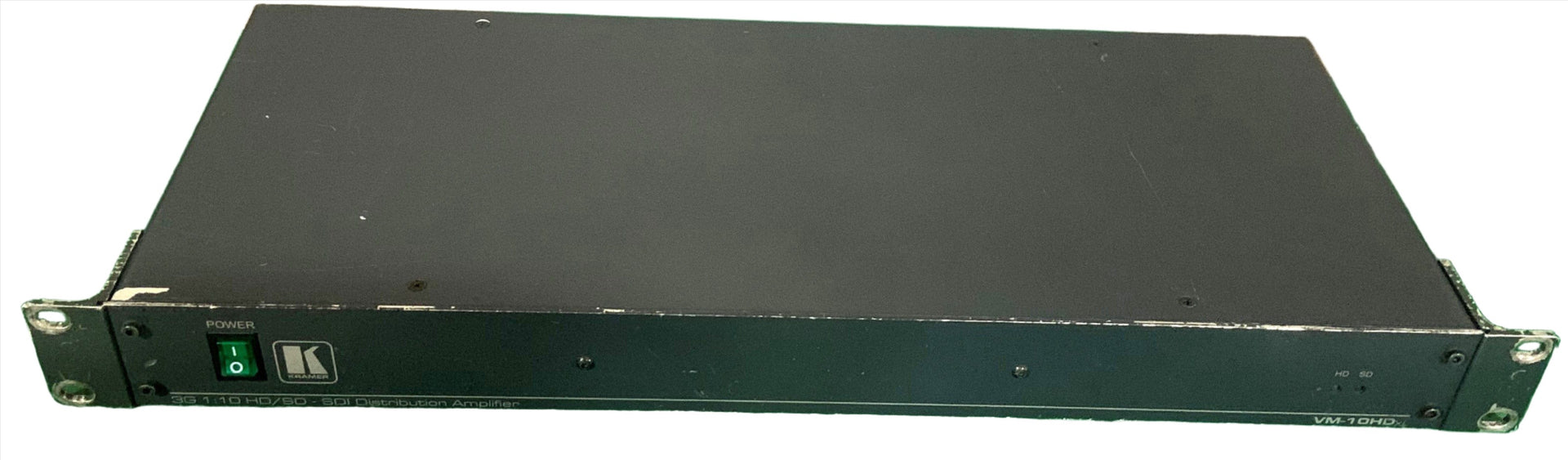

Kramer VM10HD 1:10 HD/SDI Distribution Amplifier
The Kramer VM-10HD is a high-performance distribution amplifier for SDI (SMPTE 259M and SMPTE 344M) and HD-SDI (SMPTE 292M) signals. It takes one input, provides reclocking and equalization and distributes the signal to ten identical outputs.
Features:

Max Data Rate - Up to 1.485Gbps
Multi-Standard Operation - SDI, HD-SDI
Kramer re-Klocking & Equalization Technology - Rebuilds the digital signal to travel longer distances
HD-SDI & SDI Input Indication LEDs
Looping Input
Standard 19" Rack Mount Size - 1U. Rack "ears" included

Specifications:

Input: 1 SMPTE-259M, 292M, 344M serial video, 75 Ohm on a BNC connector
Outputs: 11 equalized and reclocked SMPTE-259M, 292M, 344M outputs, 75 Ohm on BNC connectors
Max. Output Level800mVpp/75 Ohm
Baud Rate: 1.485Gbps
Coupling: AC
Power Source: 100-240V AC; 50/60Hz, 5VA
Dimensions: 19" x 7" x 1U W x D x H rack mountable
Weight: 1.5kg (3.3lbs.) approx
