3900Wh Home Backup System

Product description

short
This all-in-one bundle provides roughly 3,900 Watt Hours of power for your portable home energy needs. Equipped with a portable Yeti 1500X, Yeti Home Integration Kit transfer switch, two Yeti Tank Expansion Batteries, and the Link Expansion Module.
features

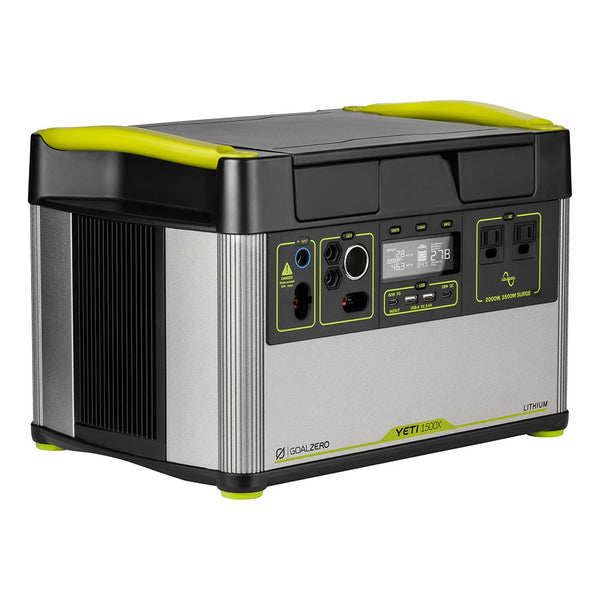

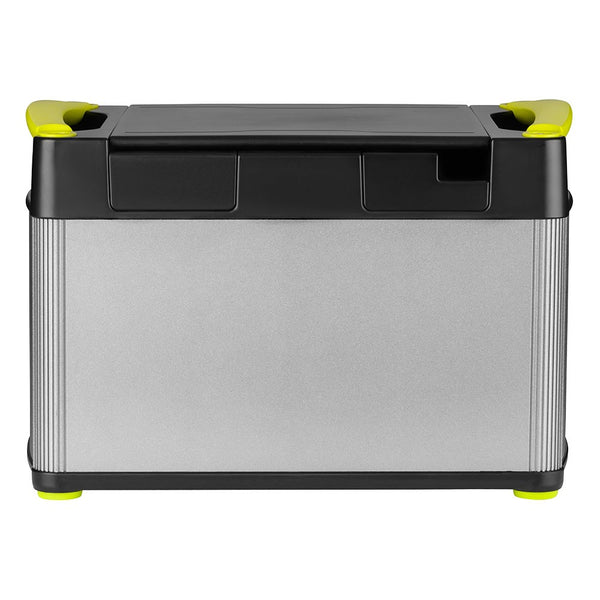

YETI 1500X HIGHLIGHTS

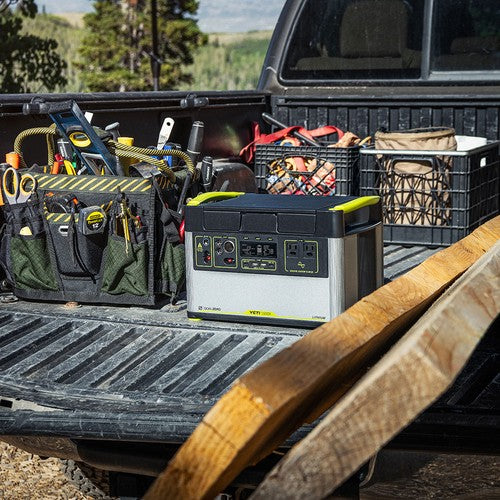

Goodbye Gas Generator. Hello Yeti X. With a lithium-ion battery at its core, the Goal Zero Yeti X equips you with safe, clean, portable power for camping, tailgating, off-grid events, workshops, and emergency home backup.

Take Your Wall Outlet Anywhere Increased 2000W AC (3500W Surge) inverter allows you to run power-hungry devices and appliances with confidence. Our new industry-leading inverter can handle surges from power tools, medical devices, and home appliances, including full-size refrigerators.

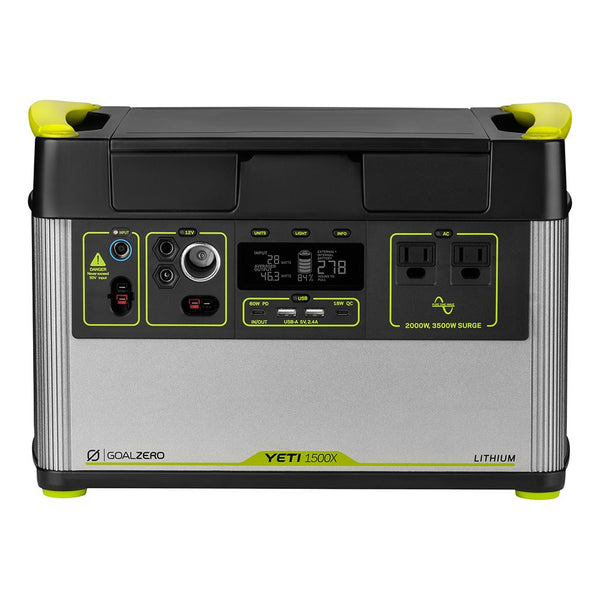

Versatile Port Options Power a wide range of devices with seven different port options including fast-charging 60W USB-C Power Delivery, multiple USB-A ports, regulated 12V, and two 120V AC ports.

Experience Unlimited PowerCharge the Yeti 1500X from the sun with our portable solar panels while away from the grid and keep it topped off from a wall outlet when you’re home. Integrated MPPT charge controller ensures you’re getting the most efficient solar charge possible.

Power in the Palm of Your HandMonitor, control, and optimize your power usage from anywhere with Yeti App 3.0. Features remote control of power in/out, real-time power consumption notifications, and charging profiles to optimize your battery life. Learn more about the Yeti App 3.0.

box2
YETI HOME INTEGRATION KIT HIGHLIGHTS

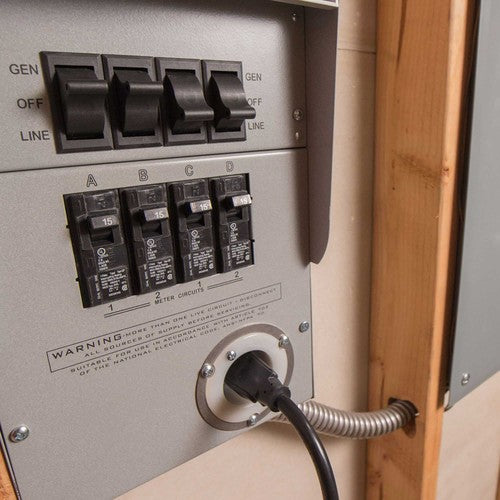

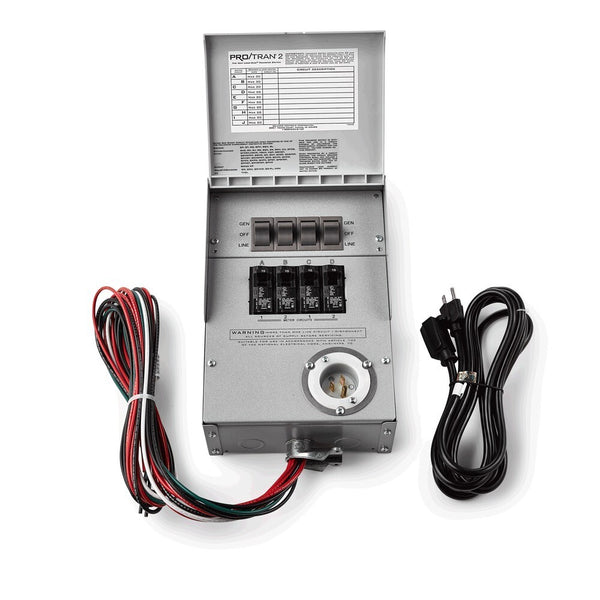

Integrate Easily The Home Integration Kit (HIK) is a Reliance Pro/Tran 2 Series 15-Amp, 4-Circuit 120V Manual Transfer Switch - Customize your backup power by working with a licensed electrician and selecting up to 4 circuits from your breaker panel. Suggested circuits include fridge/freezer, garage door, outlets in main living areas, light switches, etc.

Recharge Anywhere Yeti Extension Cable includes 10ft 14AWG to connect your Yeti Portable Power Station.

Stay Connected Increased 5,200 mAh battery gives you enough power on hand to charge phones and headlamps multiple times, or boost your tablet.


box1

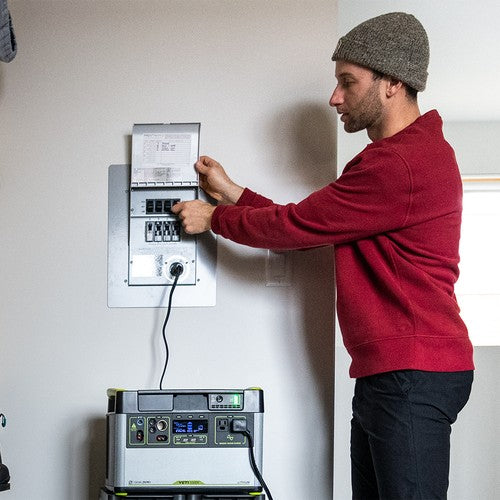

BACK UP YOUR HOME

Customizable, versatile energy storage system backs up four essential circuits in your home and scales to meet your specific power needs.
Power everything from lights in high-use rooms and fridges to medical devices, internet modems, and more. Integrate directly with your home's circuits for a more seamless backup power experience.
Integrate directly with your home's circuits for a more seamless backup power experience using the Yeti Home Integration Kit . Power everything from lights in high-use rooms and fridges to medical devices, internet modems, and more.
Find Authorized Home Installers



tech
RECHARGE CHARGE TIMES (0-100%)

AC Wall Chargers (600W Input Max)
120W Power Supply (Included): 14 hours
230W Power Supply (Add-on Purchase): 7 hours
600W Power Supply (Add-on Purchase): 3 hours
Solar Charging (600W Actual Input Max)

*NOTE: Solar Panel Rated Watts are only what the Panel is rated to produce in perfect temperature/orientation/angle/full sun conditions with no losses due to cables, etc.
100W Rated Panels (Boulder 100 BC/Nomad 100): 18-36 hours of sunlight
100W (Boulder/Nomad 100 (BC)): 18-36 Hours
200W Rated Panels (Boulder 200 BC/Nomad 200): 9-18 hours of sunlight
400W Rated Panels (2x Boulder BC/Nomad 200): 4-8 hours of sunlight
800W* Rated Panels (4x Nomad 200/etc.): 3-4 hours of sunlight
1200W* Rated Panels (4x Ranger 300/etc.): 3 hours of sunlight
*Rated Panel systems greater than 600W increase likelihood of yielding the max Yeti solar input throughout the day and in imperfect conditions


BATTERY DETAILS

Cell chemistry: Li-ion NMC
Pack capacity: 1516Wh (10.8V, 140.4Ah)
Single Cell Equivalent Capacity: 421Ah @ 3.6V
Pack Lithium Content: 126g
Lifecycles: 500 Cycles to 80% capacity (Discharge rate: 1C, Full charge/discharge, Temp: 25C)
Shelf-life: Charge every 3-6 months
Management system: MPPT charge controller

PORTS

INPUT
1x High Power Charging port (AC or Solar): 600W Max (14-50V, up to 50A)
2x 8mm charging port (AC or Solar): 150W Max (14-50V, up to 10A); Front face & under lid
INPUT/OUTPUT
1x USB-C PD port: 60W Max (5 - 20V, up to 3.0A), regulated
OUTPUT
2x AC: 2000W, 3500W Surge (120VAC 60Hz, 16.5A), Pure Sine Wave
2x USB-A: 12W Max (5V, up to 2.4A), regulated
1x USB-C: 18W Max (5 - 12V, up to 3.0A), regulated
2x 6mm: 120W Max (12V, up to 10A), regulated
1x Car Port: 160W Max (12V, up to 13A), regulated
2x High Power Port: 360W Max (12V, up to 30A), regulated; Front face & under lid
Expansion Module Port:  Under the lid - To be used with Goal Zero expansion modules only


GENERAL

Kit SKU: 44530
Chainable: No
Simultaneous Recharge & Discharge: Yes
Weight: 45.64 lbs (20.7 kg)
Dimensions: 15.25 x 10.23 x 10.37 in (38.74 x 25.98 x 34.54 cm)
Operating usage temperature: 32-104 F (0-40 C)
Warranty: 24 months


tech2
HIK PORTS

Voltage: 120 Single-Phase
Frequency: 60 Hertz
Rated Watts: 1875 Watts
Rated Amps: 15A @ 120 Volts (Single Phase)
Number of Circuit Breakers: 4
Max Generator Input: 15 Amps
Maximum Wattage: 1875 Watts
Transfer Switch Circuits: 15A 120V
Circuit Breaker Protection: Each Circuit

HIK GENERAL

Product SKU: 44060
Made: USA
Weight: 9.5 lbs (4.3 kg)
Dimensions: 7.75 x 11.25 x 4.5
Enclosure: NEMA 1R
Conduit Length: 18
UL Listed: Yes
Compatible with Yeti X and Yeti Lithium Power Stations 1000W and up

tech3

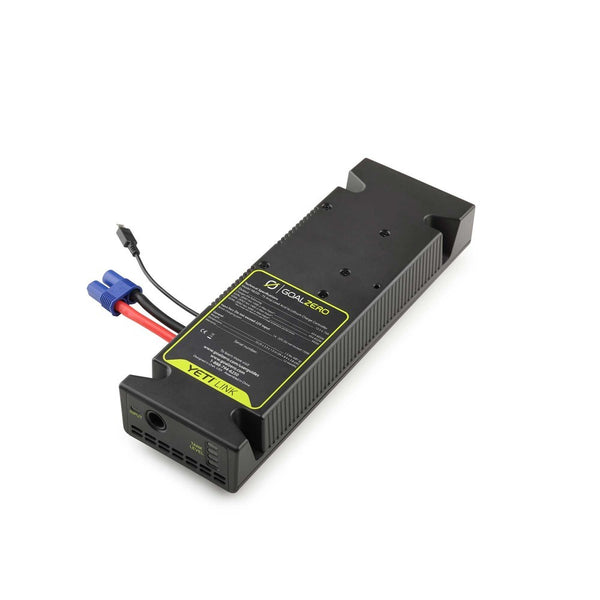

YETI LINK GENERAL

Product SKU: 98210
Weight: 1.5 lbs (680 g)
Dimensions: 10.25 x 3.3 x 1.5 in (26 x 8.4 x 3.8 cm)
Warranty 12 months
YETI X 120W POWER SUPPLY
Gauge: 16AWG
Cable Length: 9' 4"
Dimensions: 2.5 x 5.9 x 1.4 in (6.5 x 15 x 3.5 cm)

YETI LINK PORTS

Do not exceed 22V input
8mm Charging Port (input): 14 - 22V Do not exceed 150W (10A) per port
External Battery Connector (output): 65A charge controller
External Battery Connector (Input/Output): 10.7-15V. Do not exceed 15V
YETI X 120W POWER SUPPLY
Input: AC Wall Plug 100-240V - 50/60Hz 3.0A
Output: 8.0mm 16V- 7.5A, 120W

tech4
YETI TANK BATTERY CHARGE TIMES

Wall Charger (120W): 11hrs per tank

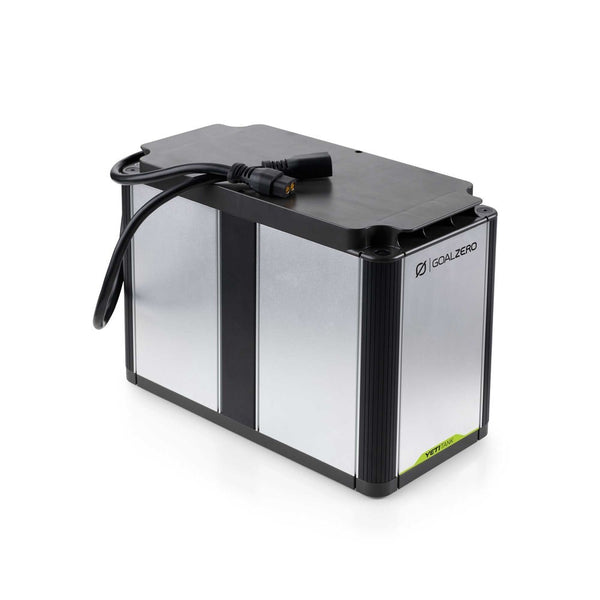

YETI TANK BATTERY DETAILS

Lead Acid (AGM)
1200Wh (12V, 100Ah)


YETI LINK CHARGE TIMES

Max Input from Yeti Tank to
Goal Zero Yeti 1000/1000X: 454-605W
Goal Zero Yeti 1400/1500X: 454-750W
Goal Zero Yeti 3000/3000X: 750W
Goal Zero Yeti 6000X: 750W

YETI TANK PORTS

Expansion port male connector (input/output) 100A Max
Expansion port female connector (input/output) 100A Max

YETI TANK GENERAL

Product SKU: 23105
Dims 15.5 x 7.5 x 10.5 in (39.37 x 19.05 x 26.67 cm)
Weight 77.1 lbs (34.97 kg)
Warranty: 12 Months
